IBM Universal Behavior Exchange Destination

IBM’s Universal Behavior Exchange (UBX) is an API that allows users to share customer interactions, behaviors, and target audiences among IBM solutions and applications - including the Watson Marketing Portfolio - without the need for custom software integration. In effect, UBX is the “Segment” of IBM’s ecosystem. Once data is routed to IBM, you can send it to any destination in UBX’s portfolio.

NOTE: IBM UBX is currently in beta and this doc was last updated on May 7, 2018. This means that there may still be some bugs for us to iron out and we’re excited to hear your thoughts. If you are interested in joining or have any feedback to help us improve the IBM UBX Destination and its documentation, let us know!

Getting Started

NOTE: To enable Segment in UBX, navigate to “Endpoints” in the UBX dashboard, select “Register new endpoint”, then select “Segment”. Once you’ve added the Segment endpoint, contact Segment support with your new endpoint’s “endpoint authentication key” for help activating your new endpoint. Note that the endpoint in UBX will not be able to receive Segment data until you have enabled both the destination in the Segment UI *and* requested activation of the endpoint from Segment’s support team.

Before you start, make sure IBM UBX supports the source type and connection mode you’ve chosen to implement. You can learn more about connection modes here.

	Web	Mobile	Server
📱 Device-mode	⬜️	⬜️	⬜️
☁️ Cloud-mode	✅	✅	✅

1. From the Segment web app, click Catalog.
2. Search for “IBM UBX” in the Catalog, select it, and choose which of your sources to connect the destination to.

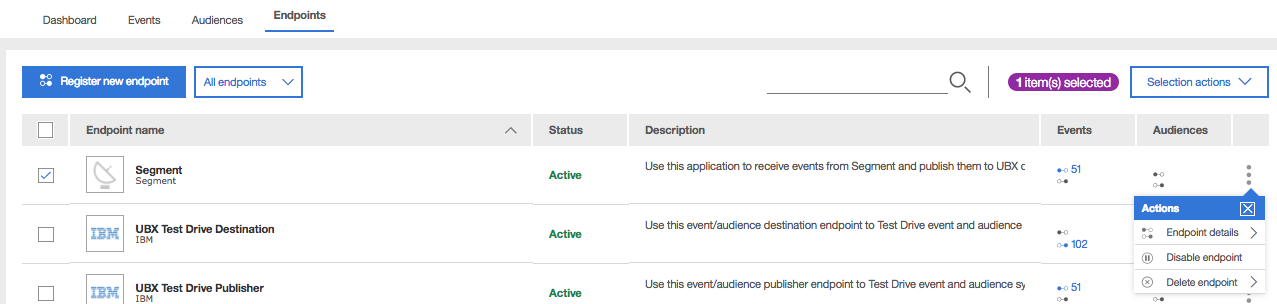

3. Enter your UBX API URL and your publisher’s endpoint authentication key in the Segment Settings UI. You should have received an email with this URL shortly after setting up your UBX account. If you can’t locate your URL, contact UBX support (the URL is also referred to as a “base URL” in the IBM UBX documentation). To locate your endpoint authentication key, navigate to the “Endpoints” tab in UBX, then look to the far right where you’ll find three vertical dots. Click on them and select “Endpoint details”.

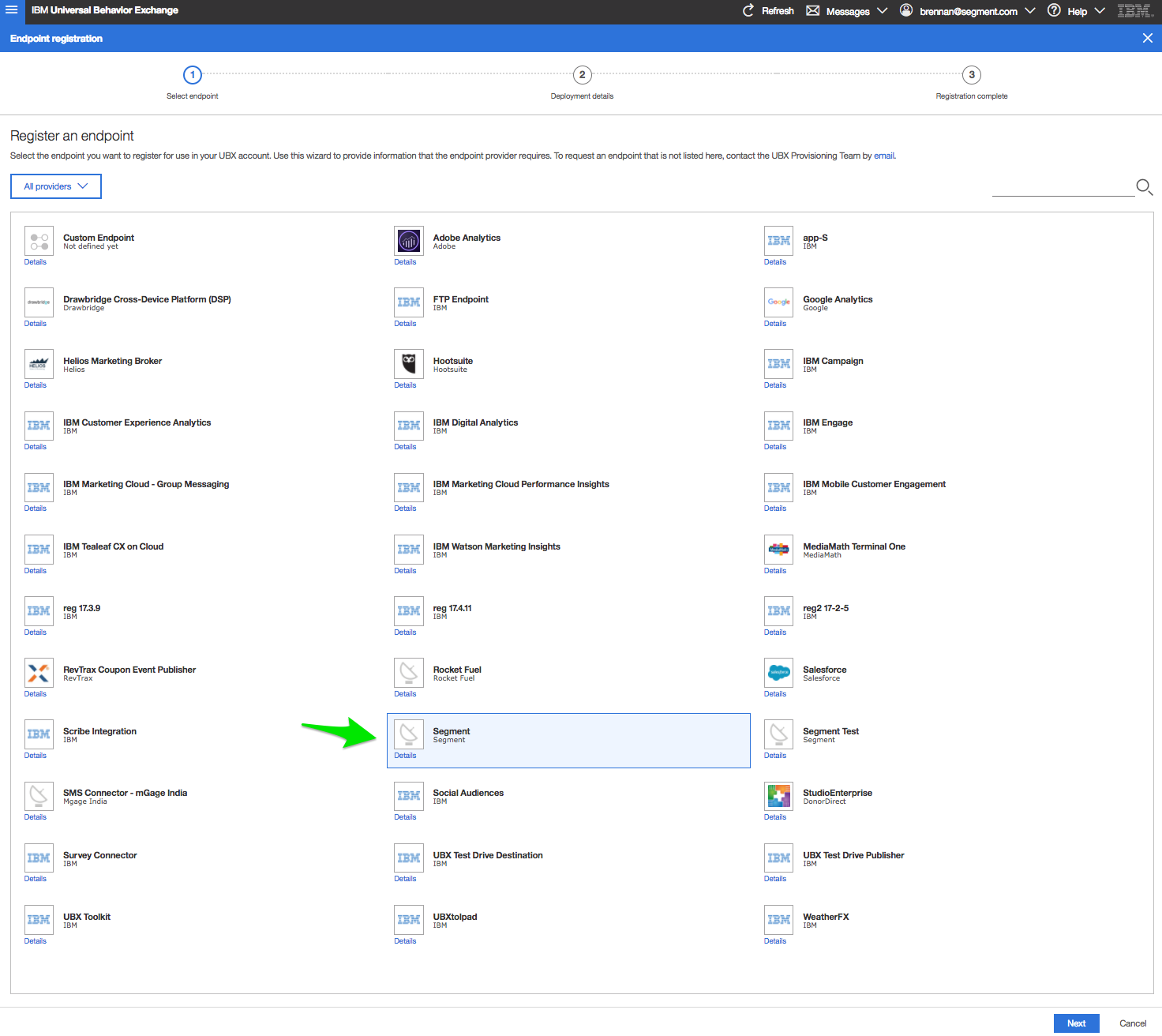

4. Register and provision a Segment endpoint within your UBX dashboard so you can access the appropriate endpoint authentication key. Do this by navigating to “Endpoints”, then “Register a new endpoint” and select “Segment”. Then click “Register” to proceed.



5. Once registered, the new endpoint’s status will remain “Pending” in the “Endpoints” tab until it has been activated. To activate an endpoint, include your UBX account’s API URL and your endpoint authentication key in an email to Segment using our tech support form.



6. Segment will activate your endpoint within 24 hours, at which time its status will update to “Active” in the UBX dashboard. Now, you can grab your endpoint authentication key again and paste it into your UBX settings in the Segment UI.

You can read more about defining and activating applications in UBX here in their documentation.

General Tracking Advice

We encourage customers to review UBX’s dynamic event library closely to become familiar with UBX’s specced events and properties. Many UBX consumers only accept specific events; likewise, many consumers function best when specific events include particular properties. Although Segment provides robust out-of-the-box mapping (documented below), we still recommend reviewing the dynamic event library closely to ensure that you are sending events and properties that enable you to get the most out of your UBX consumers.

Page

Page calls will send a ‘Page View Event’ to UBX (code ibmpageView). The below mappings may apply:

</table> _**Note:** As with `track` events, all properties sent by the user that aren't mapped above will be sent as attributes to UBX. To send a UBX-specced property that isn't mapped above, simply set the Segment property name to the UBX property code directly (e.g. `pageID`)._ Remember, you can find UBX-specific event and property codes in their [dynamic event library](https://ubx-pilot.ibmmarketingcloud.com/#/taxonomy). ## Track Segment's integration with UBX supports all public recognized UBX event types. Beware, however - UBX event destinations will only receive events to which they are subscribed. To subscribe a UBX destination to events from the Segment publisher, navigate to the "Events" tab and select "Subscribe to events".  Make sure that you subscribe your UBX event subscriber endpoints to the events you'd like them to consume from the Segment publisher. Note that while Segment supports all UBX-specced events, we have mapped the following Segment-specced events and their properties to their UBX equivalents: ### Event Mappings #### Mobile Events

Segment Property	UBX Attribute Name
name	siteID

Segment Event Name	UBX Event Code
Application Backgrounded	appSessionClose
Application Opened	appSessionOpen
Application Installed	appInstalled
Application Uninstalled	appUninstalled
Application Crashed	appCrashed

We do not define any specific mobile property mappings at this time given that Segment's spec and UBX's spec do not share closely related mobile properties. Note, you can still pass in any attribute codes as defined in [UBX's dynamic event library](https://ubx-pilot.ibmmarketingcloud.com/#/taxonomy), and Segment will pass these values downstream. #### Ecommerce Events

Segment Event Name	UBX Event Code
Product Added	cartAdd
Order Completed	ibmcartPurchase
Product Viewed	ibmproductView
Product Removed	cartRemove
Products Searched	ibmsearchedSite
Product Reviewed	wroteReview

Attributes

Segment Property Name	UBX Attribute Name
order_id	orderID
total	orderTotal
tax	orderTax
discount	orderDiscount
coupon	orderPromo
products	productList
cart_id	orderID
product_id	productID
name	productName
price	basePrice
url	productURL
image_url	imageURL
review_body	review

#### Video Events

Segment Event Name	UBX Event Code
Video Content Completed	ibmelementVideoCompleted
Video Playback Started	ibmelementVideoLaunched
Video Playback Paused	ibmelementVideoPaused
Video Playback Resumed	ibmelementVideoPlayed

Attributes

Segment Property Name	UBX Attribute Name
position	videoTimestamp
total_length	videoTotalLength

#### Email Events

Segment Event Name	UBX Event Code
Email Bounced	emailBounce
Email Link Clicked	emailClick
Email Opened	emailOpen
Unsubscribed	emailOptOut

Attributes

Segment Property Name	UBX Attribute Name
email_subject	subjectLine
list_id	messageGroupId
list_name	messageGroupName
link_url	clickUrl

_**Note**: To send a UBX event or property that isn't mapped above, simply set the Segment event or property name to the UBX-specced event or property code directly (e.g. `opptyQualified`)._ Remember, you can find UBX-specific event and property codes in their [dynamic event library](https://ubx-pilot.ibmmarketingcloud.com/#/taxonomy). ### Property Mappings Segment also maps some properties from the context object to their equivalent UBX attributes. Note that UBX only supports a few data types - `string`, `number`, `boolean` and `date`. Segment will automatically discard any properties of a type not mentioned here, with the exception of objects, which we will attempt to stringify. If we cannot, expect to see `[object Object]` appear as the value in UBX.

Segment Property	UBX Attribute Name
context.device.type	deviceType
context.ip	ip
context.location.latitude	latitude
context.locale	locale
context.location.city	locationCity
context.location.country	locationCountry
context.location.longitude	longitude
context.device.manufacturer	manufacturer
context.campaign.medium	marketingSource
context.campaign.source	mediaSource
context.device.model	modelName
context.os.name	OS
context.userAgent	platform
context.os.version	versionOS
(context.screen.width) * (context.screen.height)	resolution

### Integration-Specific Option Mapping Segment maps the following integration-specific options to UBX:

integrations['ibm-ubx'].channel	channel
integrations['ibm-ubx'].subChannel	attributes.subChannel
integrations['ibm-ubx'].contactConsent	attributes.contactConsent

An event containing all three integration-specific options may look something like this: ```javascript analytics.track('Order Completed' { // properties }, { integrations: { 'ibm-ubx': { channel: 'crm', subChannel: 'chat', contactConsent: 'email,opt-in' } } }) ``` It's important to note some information about precedent for each of these options: - `channel`: Segment first checks whether this value is defined in integration-specific options; if not and we detect `analytics-android` or `analytics-ios` libraries, `channel` is set to `mobile`; for all other libraries, `channel` is set to `web`. - `subChannel`: This value is not appended to the outgoing payload unless explicity defined by the user. - `ContactConsent`: This value is not appended to the outgoing payload unless explicity defined by the user. The value passed to Segment must be in the format `channel,subscriptionOption`. At the moment, the only acceptable channels are `email` and `sms`, and the only two acceptable subscription options are `opt-in` and `opt-out`. For more information, refer to IBM UBX's documentation on `subchannel` [here](https://www.ibm.com/support/knowledgecenter/SS9JVY/UBX/Event_taxonomy_ubx/Best_practice_event_attributes.html) (*Best practice event attributes* article) and on `channel` [here](https://www.ibm.com/support/knowledgecenter/SS9JVY/UBX/Events_ubx/Event_publication.html). Note that recommended values for these fields is often determined by the downstream tools connected to UBX (e.g. Watson Customer Engagement tools). ## Troubleshooting ### Not seeing any data from Segment appear in UBX - Check to ensure your Segment publisher endpoint is "Active". If not, see [Getting Started](#getting-started) above. - Ensure you've subscribed your UBX destinations to the appropriate events. ## FAQ Segment does not auto-generate events other than an initial `page` call when using our Analytics.js library and mobile lifecycle events when mobile lifecycle tracking is enabled using Segment's Android or iOS library. This means some events supported and in some cases expected by downstream UBX destinations - including *abandonment events* - must be derived by the customer. One approach would be to integrate with a marketing tool such as [Braze](https://segment.com/docs/connections/destinations/catalog/braze/) or [Bronto](https://segment.com/docs/connections/destinations/catalog/bronto/), in which you can [set up rules that generate abandonment events](https://segment.com/docs/guides/destinations/how-do-i-automate-multi-channel-re-engagement-campaigns/#1st-line-of-defense-the-push-notification), which are then be sent back through Segment and downstream to UBX. Another approach may be to schedule a cron job in your database that checks for users who have triggered a `Product Added` event, but who never went on to trigger an `Order Completed` event. In this case, one can logically deduce that the user abandoned his cart, hence you should trigger a server-side Segment event based on this rule, which Segment will process and pass downstream to UBX. Segment's integration with UBX supports the following UBX abandonment events: - ibmabandonedConversion - ibmbrowseAbandonment - ibmbrowseAbandonmentItem - ibmcartAbandonment - ibmcartAbandonmentItem You can find more information about these events in [UBX's Event Taxonomy](https://ubx-pilot.ibmmarketingcloud.com/#/taxonomy).

Personas

You can send computed traits and audiences generated using Segment Personas to this destination as a user property. To learn more about Personas, contact us for a demo.

For user-property destinations, an identify call is sent to the destination for each user being added and removed. The property name is the snake_cased version of the audience name, with a true/false value to indicate membership. For example, when a user first completes an order in the last 30 days, Personas sends an Identify call with the property order_completed_last_30days: true. When the user no longer satisfies this condition (for example, it’s been more than 30 days since their last order), Personas sets that value to false.

When you first create an audience, Personas sends an Identify call for every user in that audience. Later audience syncs only send updates for users whose membership has changed since the last sync.

Settings

Segment lets you change these destination settings from the Segment app without having to touch any code.

API URL

Enter your UBX account’s base URL endpoint here. This can be found in the email you received from UBX after setting up your UBX account. It shoul have the format https://<subdomain>.ubx.ibmmarketing.cloud/<path>.

Authentication Key

You can find your endpoint’s Authorization Key by looking at your endpoint details in UBX. It should look something like eff08b68-0000-0000-9a19-8e43dbeeb201:US.

Adding IBM UBX to the integrations object

To add IBM UBX to the integrations JSON object (for example, to filter data from a specific source), use one of the following valid names for this integration:

• IbmUbx

• IBM UBX
