Librato Destination

Getting Started

When you enable Librato in the Segment web app, your changes appear in the Segment CDN in about 45 minutes, and then Analytics.js starts asynchronously loading the custom Librato provider on your website.

• Since Librato only records custom events, no metrics appear in Librato until you start using the API explained below.

Librato supports the Segment track method for both client-side and server-side.

Track

When you make a Track call, Segment adds a gauge measurement to Librato. The gauge is named after your event.

Here’s an example using Node.js

analytics.track({
  userId: '507f191e81',
  event: 'Event Triggered'
  properties: {
    value: 2
  }});

And here’s an example with Python

analytics.track('507f191e81', 'Event Triggered', {
      'value': 2
 })

The value event property allows you to set the magnitude of the data point. All other event properties will be ignored.

Metrics

To get the most out of your event gauges, enable the following options in the Librato interface for each Segment gauge:

Period - if set to 60 seconds, each data point on the graph represents the sum of the total number of events that happened in the last 60 seconds.

Source Aggregation - allows you to aggregate your gauge metrics over a period of time.

Average: Sum - sums measurement values over time.

Metric Source

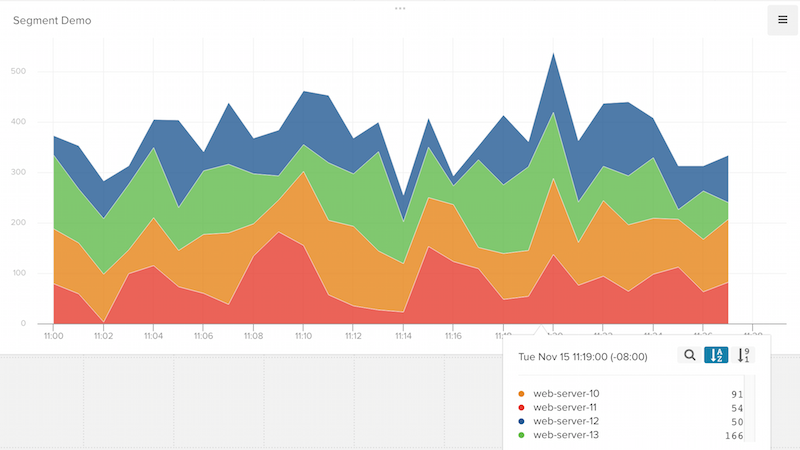

You may want to be able to split your time series metrics by the source, such as the computer which the event is coming from. By default, the source is set to the event, but you can override it by setting context.Librato.source.

Here’s an example using Node.js

analytics.track({
  userId: '507f191e81',
  event: 'Event Triggered'
  properties: {
    value: 2
  },
  context: {
     'Librato': {
        'source': 'your-web-server-X.X.X.XX'
     }
  }
});

And here’s an example with Python

analytics.track('507f191e81', 'Event Triggered',
  {
    'value': 2
   },
   {
    'Librato': {
      'source': 'your-web-server-X.X.X.XX'
  }
})

Personas

You can send computed traits and audiences generated using Segment Personas to this destination as a user property. To learn more about Personas, contact us for a demo.

For user-property destinations, an identify call is sent to the destination for each user being added and removed. The property name is the snake_cased version of the audience name, with a true/false value to indicate membership. For example, when a user first completes an order in the last 30 days, Personas sends an Identify call with the property order_completed_last_30days: true. When the user no longer satisfies this condition (for example, it’s been more than 30 days since their last order), Personas sets that value to false.

When you first create an audience, Personas sends an Identify call for every user in that audience. Later audience syncs only send updates for users whose membership has changed since the last sync.

Supported Sources and Connection Modes

Before you start, make sure Librato supports the source type and connection mode you’ve chosen to implement. You can learn more about connection modes here.

Segment offers an optional Device-based Connection Mode for Mobile data going to Librato, so that you can use Librato features that collect data directly from the mobile device. To do this, you must package the Segment-Librato mobile SDK with the Segment mobile library.

Settings

Segment lets you change these destination settings from the Segment app without having to touch any code.

Token

You can find your API Token on the Librato Account page.

email

This should be the email you signed up for your Librato account with.
