Segment Data Lakes Overview

Segment Data Lakes sends Segment data to a cloud data store (for example AWS S3) in a format optimized to reduce processing for data analytics and data science workloads. Segment data is great for building machine learning models for personalization and recommendations, and for other large scale advanced analytics. Data Lakes can reduce the amount of processing required to get real value out of your data.

To learn more, check out our blog post.

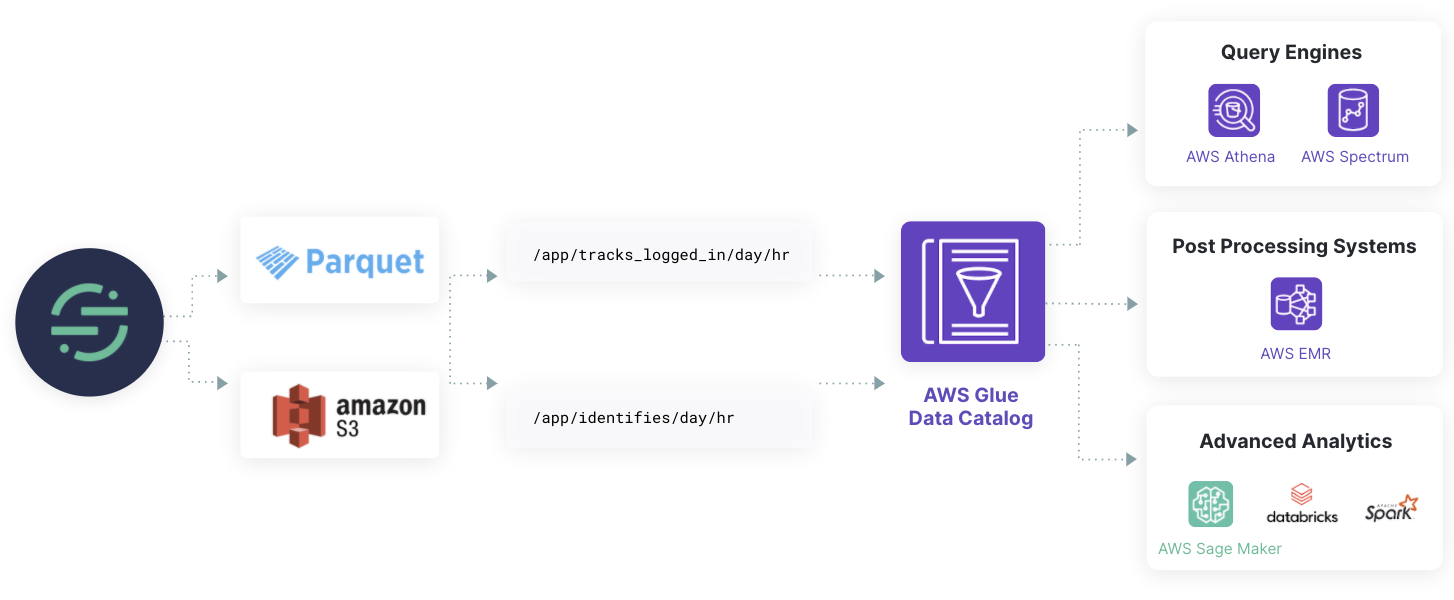

How Segment Data Lakes work

Data Lakes store Segment data in S3 in a read-optimized encoding format (Parquet) which makes the data more accessible and actionable. To help you zero-in on the right data, Data Lakes also creates logical data partitions and event tables, and integrates metadata with existing schema management tools, such as the AWS Glue Data Catalog. The resulting data set is optimized for use with systems like Spark, Athena, EMR, or Machine Learning vendors like DataBricks or DataRobot.

Segment sends data to S3 by orchestrating the processing in an EMR (Elastic MapReduce) cluster within your AWS account using an assumed role. Customers using Data Lakes own and pay AWS directly for these AWS services.

Using a Data Lake with a Data Warehouse

The Data Lakes and Warehouses products are compatible using a mapping, but do not maintain exact parity with each other. This mapping helps you to identify and manage the differences between the two storage solutions, so you can easily understand how the data in each is related. You can read more about the differences between Data Lakes and Warehouses.

When you use Data Lakes, you can either use Data Lakes as your only source of data and query all of your data directly from S3, or you can use Data Lakes in addition to a data warehouse.

Set up Segment Data Lakes

For detailed instructions on how to configure Segment Data Lakes, see the Data Lakes catalog page. Be sure to consider the EMR and AWS IAM components listed below.”

EMR

Data Lakes uses an EMR cluster to run jobs that load events from all sources into Data Lakes. The AWS resources portion of the set up instructions sets up an EMR cluster using the m5.xlarge node type. Data Lakes keeps the cluster always running, however the cluster auto-scales to ensure it’s not always running at full capacity. Check the Terraform module documentation for the EMR specifications.

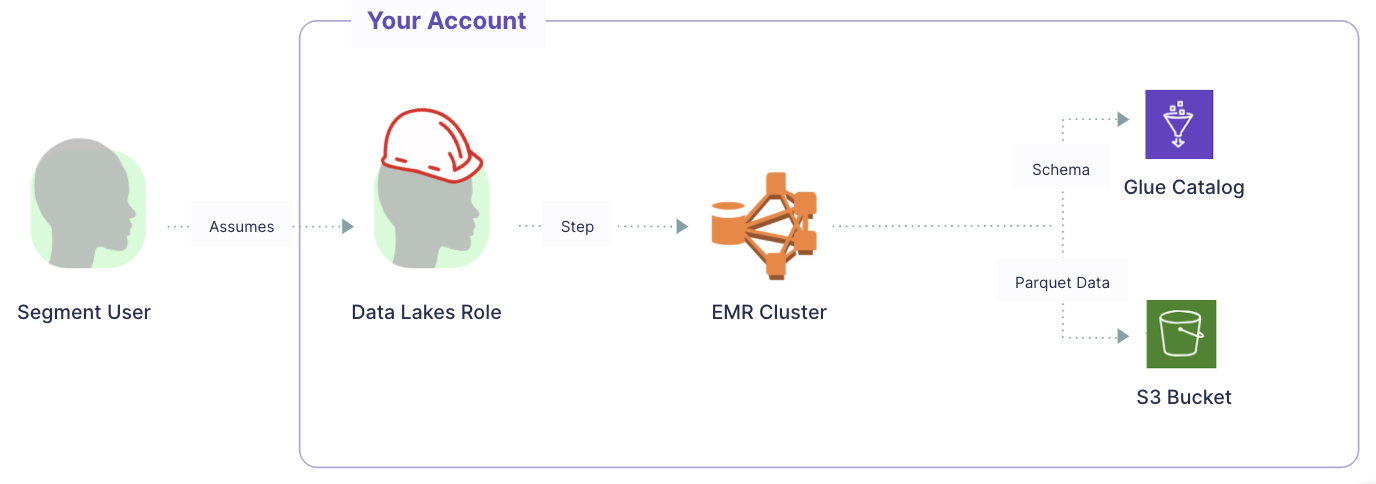

AWS IAM Role

Data Lakes uses an IAM role to grant Segment secure access to your AWS account. The required inputs are:

• external_ids: External IDs are the part of the IAM role which Segment uses to assume the role providing access to your AWS account. You will define the external ID in the IAM role as the Segment Workspace ID in which you want to connect to Data Lakes. The Segment Workspace ID can be retrieved from the Segment app] when navigating to the Settings > General Settings > ID.
• s3_bucket: Name of the S3 bucket used by the Data Lake.

Data Lakes schema

Segment Data Lakes applies a standard schema to make the raw data easier and faster to query. Partitions are applied to the S3 data for granular access to subsets of the data, schema components such as data types are inferred, and a map of the underlying data structure is stored in a Glue Database.

S3 partition structure

Segment partitions the data in S3 by the Segment source, event type, then the day and hour an event was received by Segment, to ensure that the data is actionable and accessible.

The file path looks like: s3://<top-level-Segment-bucket>/data/<source-id>/segment_type=<event type>/day=<YYYY-MM-DD>/hr=<HH>

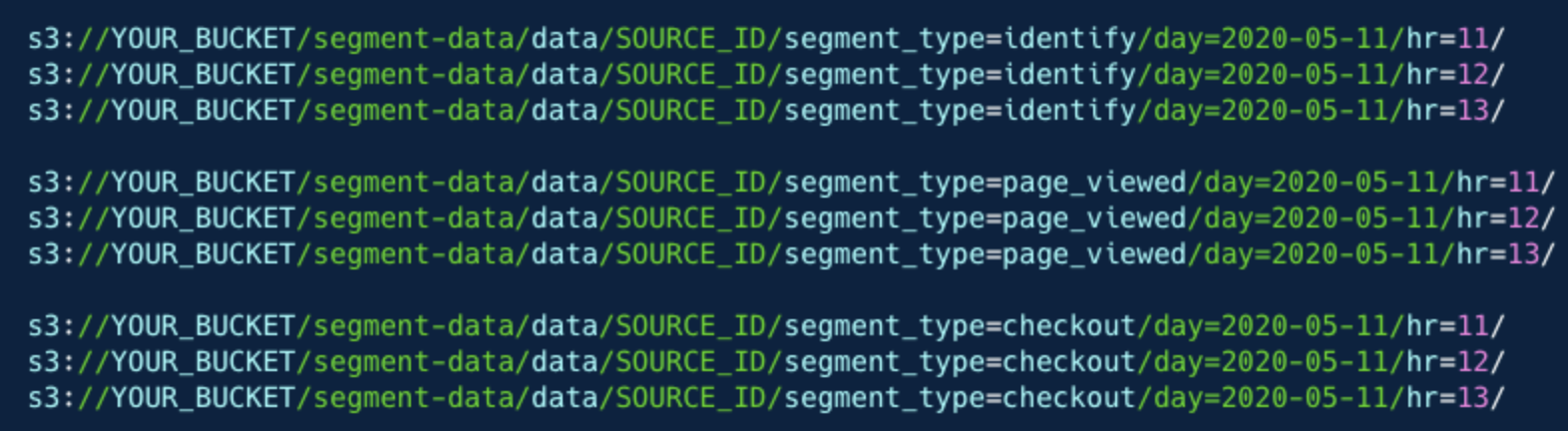

Here are a few examples of what events look like:

By default, the date partition structure is day=<YYYY-MM-DD>/hr=<HH> to give you granular access to the S3 data. You can change the partition structure during the set up process, where you can choose from the following options:

• Day/Hour [YYYY-MM-DD/HH] (Default)
• Year/Month/Day/Hour [YYYY/MM/DD/HH]
• Year/Month/Day [YYYY/MM/DD]
• Day [YYYY-MM-DD]

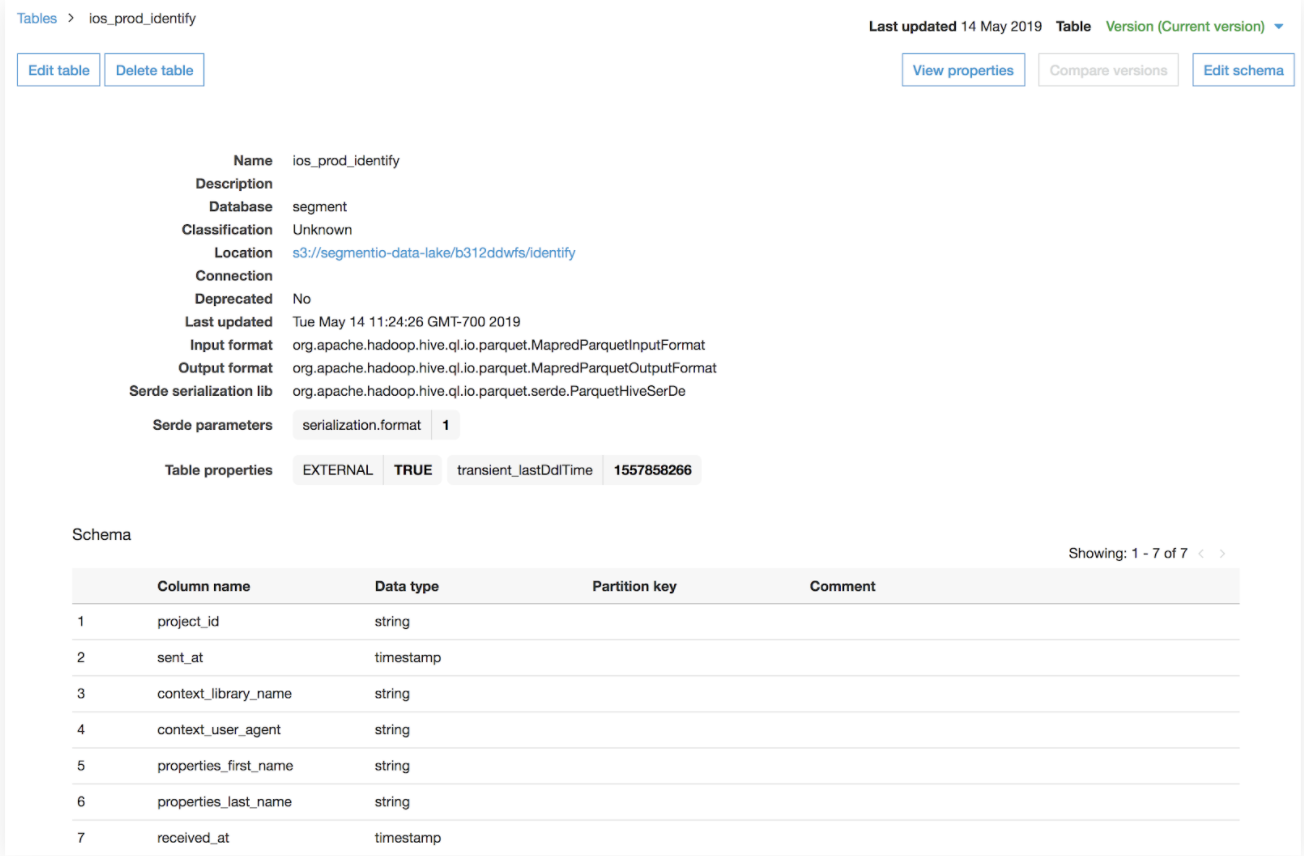

AWS Glue data catalog

Data Lakes stores the inferred schema and associated metadata of the S3 data in AWS Glue Data Catalog. This metadata includes the location of the S3 file, data converted into Parquet format, column names inferred from the Segment event, nested properties and traits which are now flattened, and the inferred data type.

New columns are appended to the end of the table in the Glue Data Catalog as they are detected.

Glue database

The schema inferred by Segment is stored in a Glue database within Glue Data Catalog. Segment stores the schema for each source in its own Glue database to organize the data so it is easier to query. To make it easier to find, Segment writes the schema to a Glue database named using the source slug by default. The database name can be modified from the Data Lakes settings.

Data types

Data Lakes infers the data type for an event it receives. Groups of events are poled every hour to infer the data type for that each event.

The data types supported in Glue are:

• bigint
• boolean
• decimal(38,6)
• string
• timestamp

Schema evolution

Once Data Lakes sets a data type for a column, all subsequent data will attempt to be cast into that data type. If incoming data does not match the data type, Data Lakes tries to cast the column to the target data type.

Size mismatch

If the data type in Glue is wider than the data type for a column in an on-going sync (for example, a decimal vs integer, or string vs integer), then the column is cast to the wider type in the Glue table. If the column is narrower (for example, integer in the table versus decimal in the data), the data might be dropped if it cannot be cast at all, or in the case of numbers, some data might lose precision. The original data in Segment remains in its original format, so you can fix the types and replay to ensure no data is lost. Learn more about type casting here.

Data mismatch

If Data Lakes sees a bad data type, for example text in place of a number or an incorrectly formatted date, it attempts a best effort conversion to cast the field to the target data type. Fields that cannot be cast may be dropped. You can also correct the data type in the schema to the desired type and Replay to ensure no data is lost. Contact Segment Support if you find a data type needs to be corrected.
